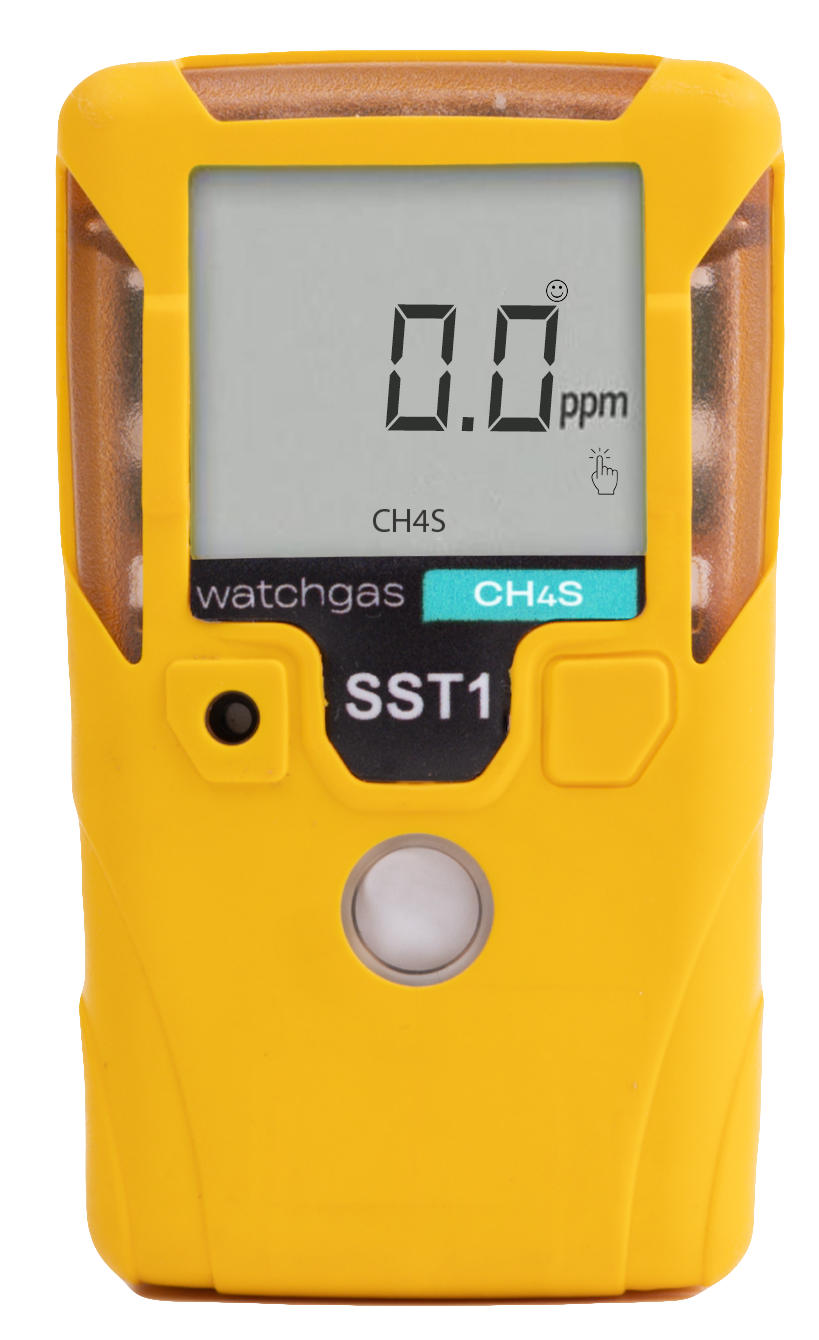

SST1: Serviceable

SST1 Serviceable Gas Detector

The SST1 Serviceable offers one of the most cost-effective solutions on the market. With its 3-year replaceable battery and solid polymer sensor technology, the SST1 offers a compact and modular design while not compromising on its ruggedness.

  • TWA & STEL Alarms
  • NFC and WatchGas Application
  • 3-year battery life based on alarms
  • Serviceable Battery and Sensors
  • Available sensors: CO, H2S, O2, SO2, H2 (low-range), NH3, PH3, CH4S

SST1 Serviceable یکی از مقرون‌به‌صرفه‌ترین راه‌حل‌های موجود در بازار را ارائه می‌دهد. با باتری قابل‌تعویض سه‌ساله و فناوری حسگر پلیمر جامد، این دستگاه طراحی جمع‌وجور و مدولار دارد و در عین حال از استحکام و دوام بالایی برخوردار است.

  • آلارم‌های TWA و STEL
  • پشتیبانی از NFC و برنامه WatchGas
  • عمر باتری سه‌ساله بر اساس میزان آلارم‌ها
  • باتری و حسگرهای قابل سرویس
  • سنسورهای موجود: CO، H2S، O2، SO2، H2 (برد پایین)، NH3، PH3، CH4S

Download datasheet: MKT-SST1-SERV-DS-V1.2

Categories: other brands, Watchgas Tag: watchgas
  • Description :
  • توضیحات:
  • DETECTOR SPECIFICATION:
  • Reviews (0)

Description :

EASY SETUP :

Near Field Communication built in as standard allows for a wide range of solutions depending on
your needs. Simply pair with the
WatchGas App to manage your fleet, bump, calibrate, assign or download
event logs. See Tap & Go application
note for more information on the
benefits of NFC.

SENSOR :

Using the latest in Solid State Technology our H2S, CO, O2, SO2, and soon 15 more, offer stability and reliability over extreme temperatures and conditions. With its smaller form factor and the removal of traditional Electrolyte allows for a new standard in the single gas market.

DISPLAY:

With the largest LCD in its category the SST1’s display can be set to show months remaining, Real Time
Gas Reading on display or the Real
Time Clock. This can all be done using the built in NFC and the
WatchGas App ensuring your cus
tomer has the display they require for quick decision making.

RUGGED:

Designed with the harshest environments in mind the SST1 offer an Ingress Protection rating of 67-68.
The casing is a double shot housing
that gives extra robustness while not compromising on quality. The
screen protectors located either
side of the display are to protect the LCD from scratching and is required
due to the smaller sensor profile.

ALERT :

As a safety device it is essential that the device clearly notifies users of the presence of gas. The SST1 has a
95dB alarm at 30 centimetres which
is the industry standard and i required in loud industrial environments. High and Low alarms can be configured by the customer and automatically updated directly on the device or through the SST Dock.

COST EFFECTIVE:

Designed to be zero maintenance and remove the need for calibration the SST1 allows for 2 or 3 years of
full up time. No sensor or battery
replacements means no hidden costs and a one-year shelf life it is
perfect for turn arounds and con
tractors.

توضیحات:

SST1 SINGLE GAS DISPOSIBLE

Near Field Communication  که به صورت استاندارد تعبیه شده است، طیف وسیعی از راه حل ها را بسته به این امکان را می دهد

نیازهای شما: به سادگی با برنامه WatchGas جفت شوید تا ناوگان خود را مدیریت کنید، ضربه بزنید، کالیبره کنید، اختصاص دهید یا دانلود کنید

گزارش رویدادبرای اطلاعات بیشتر در مورد یادداشت برنامه Tap & Go را ببینید

مزایای NFC

سنسور:

با استفاده از آخرین فناوری حالت جامد، H2S، CO، O2، SO2 و به زودی 15 مورد دیگر، پایداری و قابلیت اطمینان را در دماها و شرایط شدید ارائه می دهند.

با ضریب شکل کوچکتر آن و حذف الکترولیت سنتی استاندارد جدیدی در بازار گاز واحد ایجاد می کند.



نمایش دادن:

با بزرگترین LCD در رده خود، صفحه نمایش SST1 را می توان طوری تنظیم کرد که ماه های باقی مانده، Real Time  را نشان دهد

خواندن گاز روی نمایشگر یا ساعت واقعی. همه اینها را می توان با استفاده از NFC داخلی و NFC انجام داد

برنامه WatchGas اطمینان حاصل می کند که مشتری شما صفحه نمایش مورد نیاز برای تصمیم گیری سریع را دارد.

ناهموار:

SST1 با در نظر گرفتن سخت‌ترین محیط‌ها، امتیاز حفاظت از نفوذ 67-68 را ارائه می‌کند.

بدنه یک محفظه دو شات است که استحکام بیشتری می دهد در حالی که کیفیت آن را به خطر نمی اندازد.

محافظ های صفحه نمایش که در دو طرف نمایشگر قرار دارند برای محافظت از LCD در برابر خراشیدن هستند و ضروری است

به دلیل مشخصات سنسور کوچکتر

هشدار :

به عنوان یک وسیله ایمنی ضروری است که دستگاه به طور واضح وجود گاز را به کاربران اطلاع دهد

SST1 دارای زنگ هشدار 95 دسی بل در 30 سانتی متر است که استاندارد صنعتی است و در محیط های صنعتی با صدای بلند  مورد نیاز است. آلارم های بالا و پایین را می توان توسط مشتری پیکربندی کرد و به طور خودکار مستقیماً در دستگاه یا از طریق SST Dock به روز رسانی کرد.

مقرون به صرفه :

طراحی شده برای نگهداری صفر و رفع نیاز به کالیبراسیون، SST1 به مدت 2 یا 3 سال اجازه می دهد.

زمان کامل عدم تعویض سنسور یا باتری به معنای عدم وجود هزینه پنهان و ماندگاری یک ساله است

مناسب برای چرخش و پیمانکاران.

DETECTOR SPECIFICATION:

Size 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in)
Weight 88 g (3.1 oz)
Temperature CO, H2S, O2 SO2: -40°C to +60°C (-40°F to +140°F) / Others: -20°C to +60°C (-4°F to +140°F)
Humidity 5 ~ 95 %RH (Non-condensing)
Response time T90 H2S, CO, O2, PH3 H2: < 10 sec CH4S: <40 sec SO2: <55 sec NH3: <130 sec Other sensors may vary
Battery life O2: 2 years H2S, CO, SO2, NH3, H2, PH3, Ch4S: up to 3 years, dependent on gas alarms
Event logging Last 100 events
IP IP67-68
Communication NFC
Shelf life 1 year
Certifications & Approvals ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU
Warranty Instrument: 3 years Battery: 2 years based on 1 min of alarm per day Sensors: SO2 2 years, PH3: 1 year, NH3: 1 year, CH4S: 1 year, H2: 2 years, Other sensors: One year shelf life then two or three years from activation date depending on device type.

Reviews

There are no reviews yet.

Be the first to review “SST1: Serviceable” لغو پاسخ

نشانی ایمیل شما منتشر نخواهد شد. بخش‌های موردنیاز علامت‌گذاری شده‌اند *

Related products

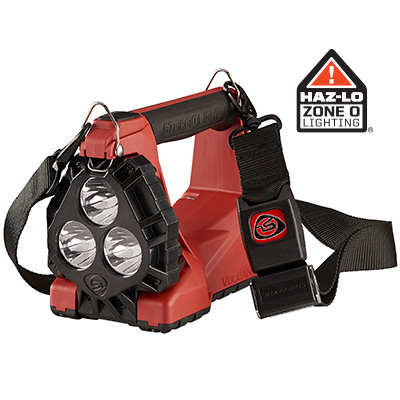

  • چراغ قوه ضد انفجار VULCAN® 180 HAZ-LO® ATEX

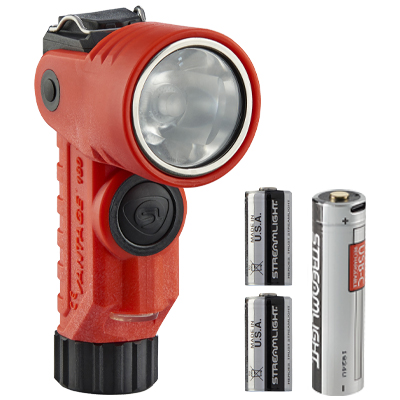

  • چراغ قوه ضد انفجار VANTAGE® 180 X FLASHLIGHT

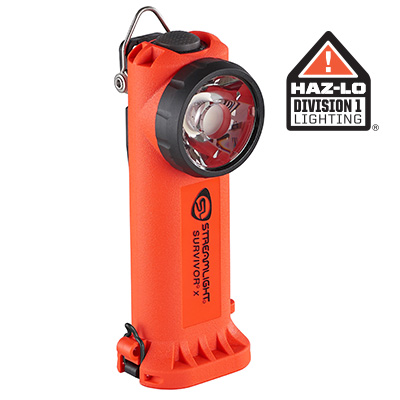

  • چراغ قوه ضد انفجار SURVIVOR® X RIGHT ANGLE LIGHT RECHARGEABLE OR ALKALINE
